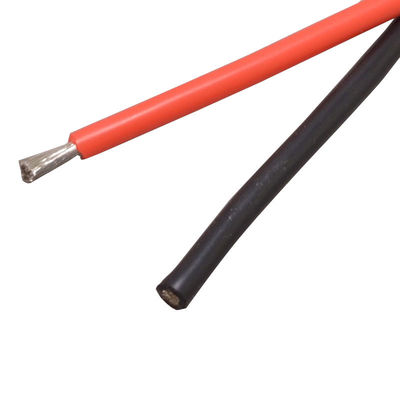

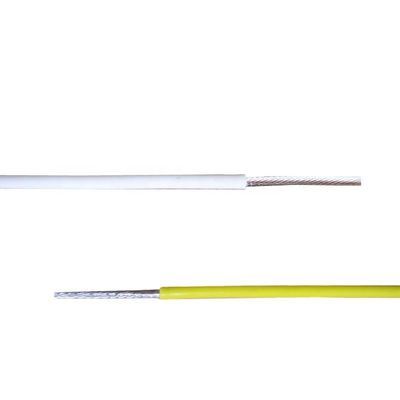

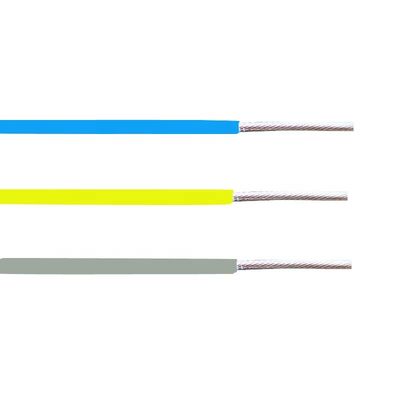

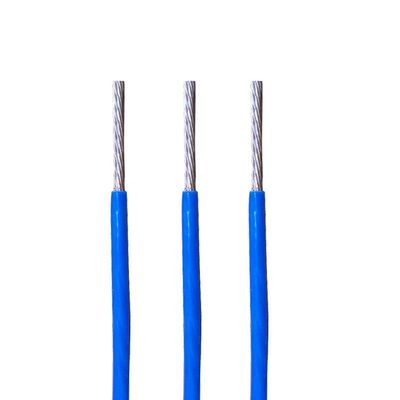

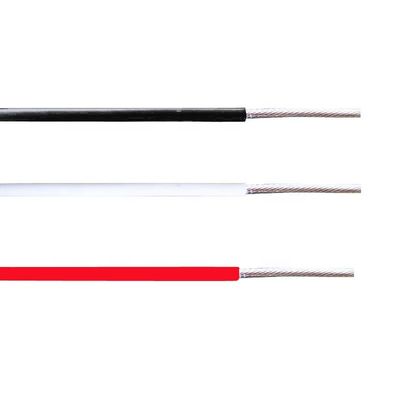

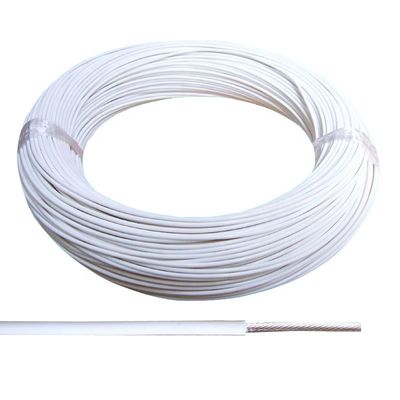

FEP Insulation Wires offer excellent corrosion resistance, oil resistance, and withstand strong acids, alkalis, and oxidants. These wires feature superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. They are highly fire-resistant, durable, and have an extended service life.
Applications include:
| Conductor Materials | Tinned Plated Copper, Silver Plated Copper, Bare Copper |
|---|---|
| Conductor Type | Stranded or Solid |
| Number Core | Single Core or Multiple Cores |
| Insulation | FEP, PTFE, PFA Insulated |
| Rated Voltage | 600V or Below |
| Rated Temperature | -65°C to +200°C |
| Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
| Type | Name |
|---|---|
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable |
|---|---|---|---|
| 36AWG | 0.013mm² | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm² | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm² | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm² | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm² | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm² | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm² | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm² | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm² | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm² | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm² | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm² | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm² | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm² | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm² | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm² | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm² | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm² | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm² | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm² | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm² | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm² | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Note: FEP high temperature lead wire specifications and core numbers are not limited to above regulations and can be customized.
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.
Our main products include:
We have advanced production facilities, an integrated management system, and collaborate with universities and research institutes. We offer custom cable solutions to meet specific customer requirements.
In past years, we have participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India, and other industry events.
A: We are a professional manufacturer specializing in research, development, and sales of military and consumer cable wire and cable compounds. Our facility is located in Hunan Province, China.
A: As a 21-year supplier to China's aerospace and military sectors, we produce our own cable compounds. This vertical integration allows us to maintain superior quality while offering competitive pricing.
A: Quality is our top priority. We implement strict quality control measures throughout the entire process - from design and material procurement to manufacturing, semi-finished product testing, and final inspection.
A: We provide a 1-year comprehensive warranty. If products have quality issues, we offer unconditional replacement or refund.
A: We can prepare sample orders. For small quantities available in stock, samples may be provided free of charge (customer responsible for freight).
