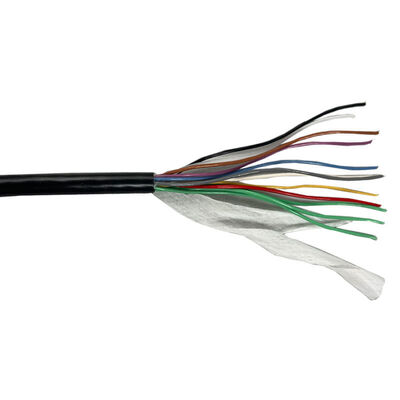

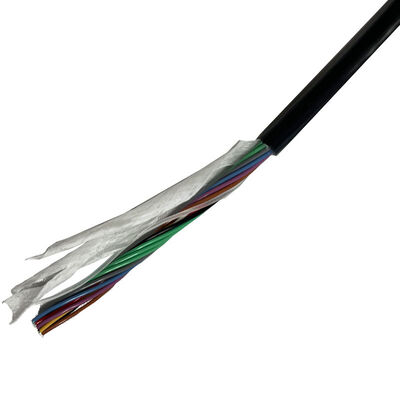

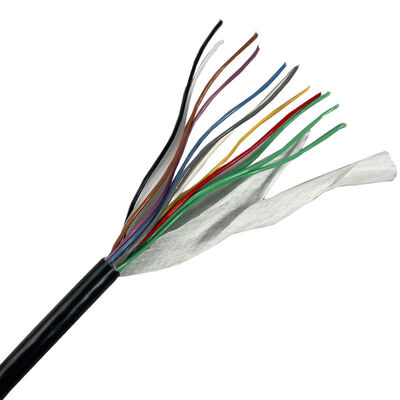

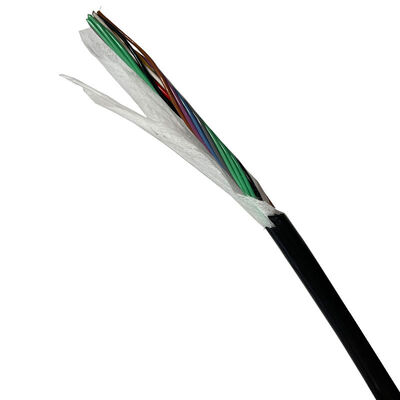

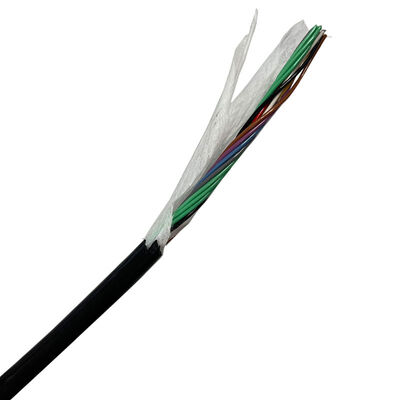

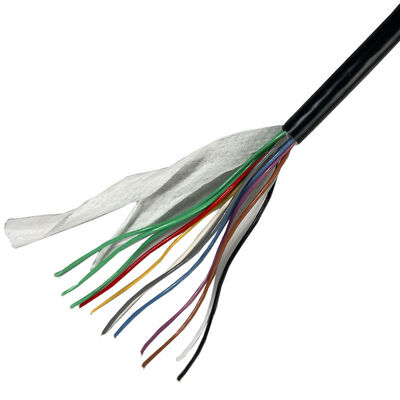

ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail to deliver the required level of protection.
Our ETFE Insulated Wire withstands extreme temperatures ranging from -200°C to 150°C without compromising structural integrity or electrical performance. This makes it suitable for various industries including aerospace, automotive, and industrial manufacturing where exposure to harsh operating conditions is common.
In addition to thermal resilience, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments. It is designed to meet stringent safety standards and delivers consistent electrical performance with low dielectric constant and high dielectric strength, ensuring reliable power transmission and signal integrity.
| Conductor Materials | Tinned Plated Copper or Silver Plated Copper |
| Conductor Type | Stranded or Solid |
| Number Core | 1 Core, 2 Cores, 3 Cores, 4 Cores... |
| Insulation | FEP, PFA, PTFE, ETFE Insulated |
| Sheath | TPU Jacket |
| Rated Voltage | 600V or Below |
| Rated Temperature | -65°C to +200°C |
| Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green... |
| Type | Name |
|---|---|
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable |
|---|---|---|---|
| 36AWG | 0.013mm² | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm² | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm² | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm² | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm² | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm² | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm² | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm² | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm² | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm² | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm² | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm² | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm² | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm² | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm² | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm² | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm² | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm² | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm² | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm² | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm² | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm² | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Note: FEP high temperature lead wire specification and core number are not limited to above regulation - they can be customized.
